GIUNTI ROTANTI PER OLIO IDRAULICO E ARIA
| ARIA | OLIO Via Centrale |
OLIO Via laterale |
||
| T MAX | °C | 90 | 90 |
90 |
| P MAX | bar | 12 | 100 |
70 |
| N MAX | min-1 | 3000 | 3000 |
3000 |
 |

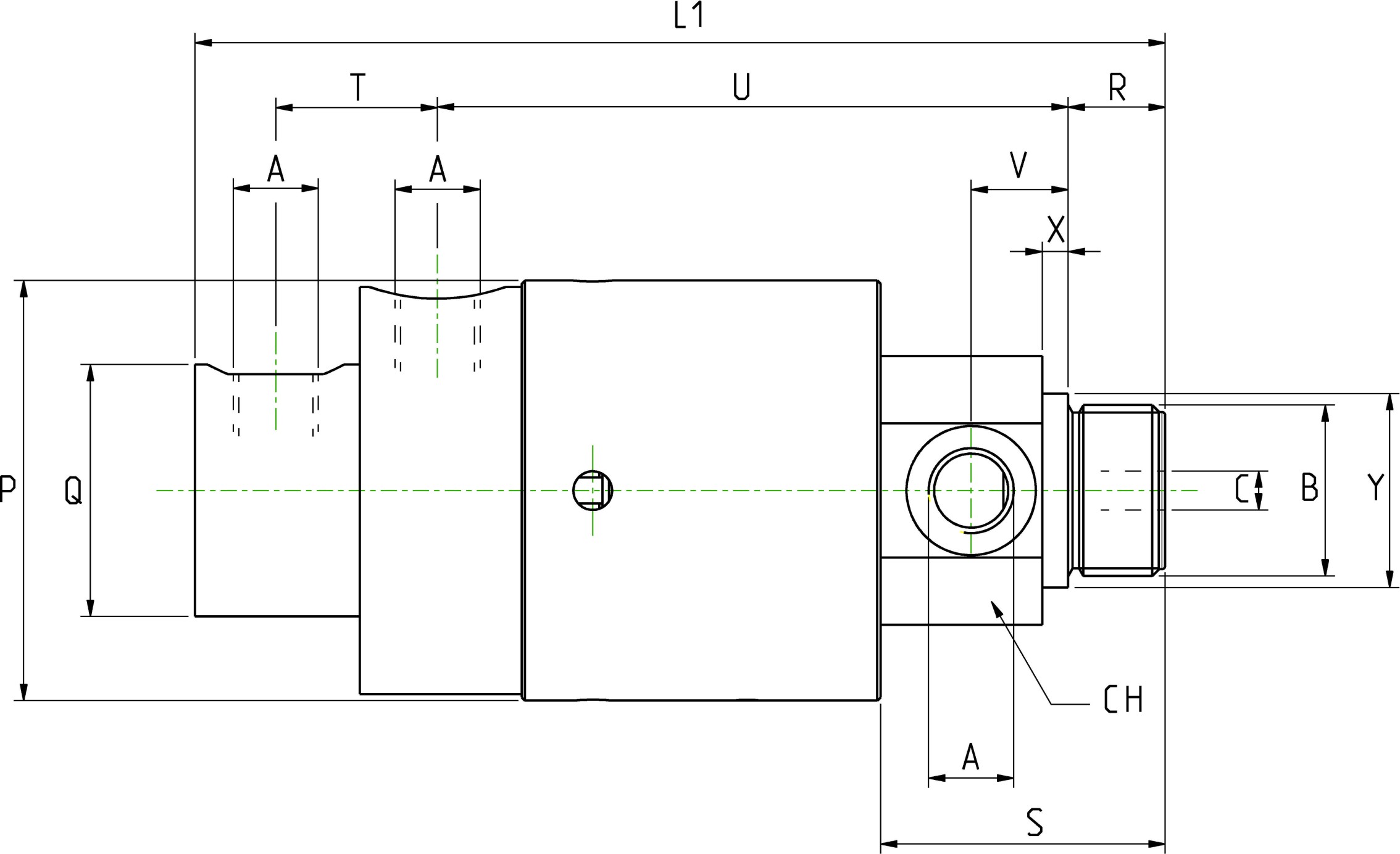

| MODELLO |
A BSP |
B BSP |
C
|
L1 | P |
Q
|
R | S | T | U | V | X | Y | CH | |
| GD 06 2U | 1/4 | 3/4 | 6 | 150 | 65 | 39 | 15 | 44 | 25 | 82.5 | 15 | 4 | 30 | 36 |  |
| GD 10 2U | 3/8 | 1" | 9 | 177 | 80 | 45 | 18 | 54 | 30 | 114 | 18 | 5 | 40 | 55 | |
| GD 13 2U | 1/2 | 1"1/4 | 13 | 215 | 100 | 62 | 22 | 71.5 | 37 | 140 | 23 | 5 | 45 | 65 | |
