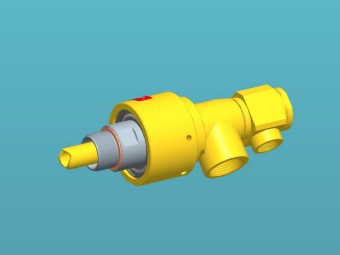

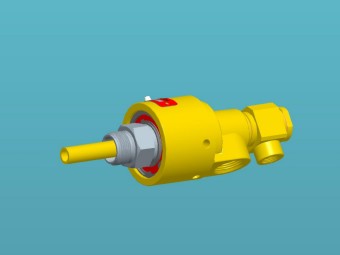

GIUNTI ROTANTI PER ACQUA, ARIA, OLIO, VUOTO





NOW WITH ADJUSTABLE SIPHONS







TIPO

A

B
C
D
E
G

I ±1

M
N
P
Q ±1
R h13
S
T
CH

PDF

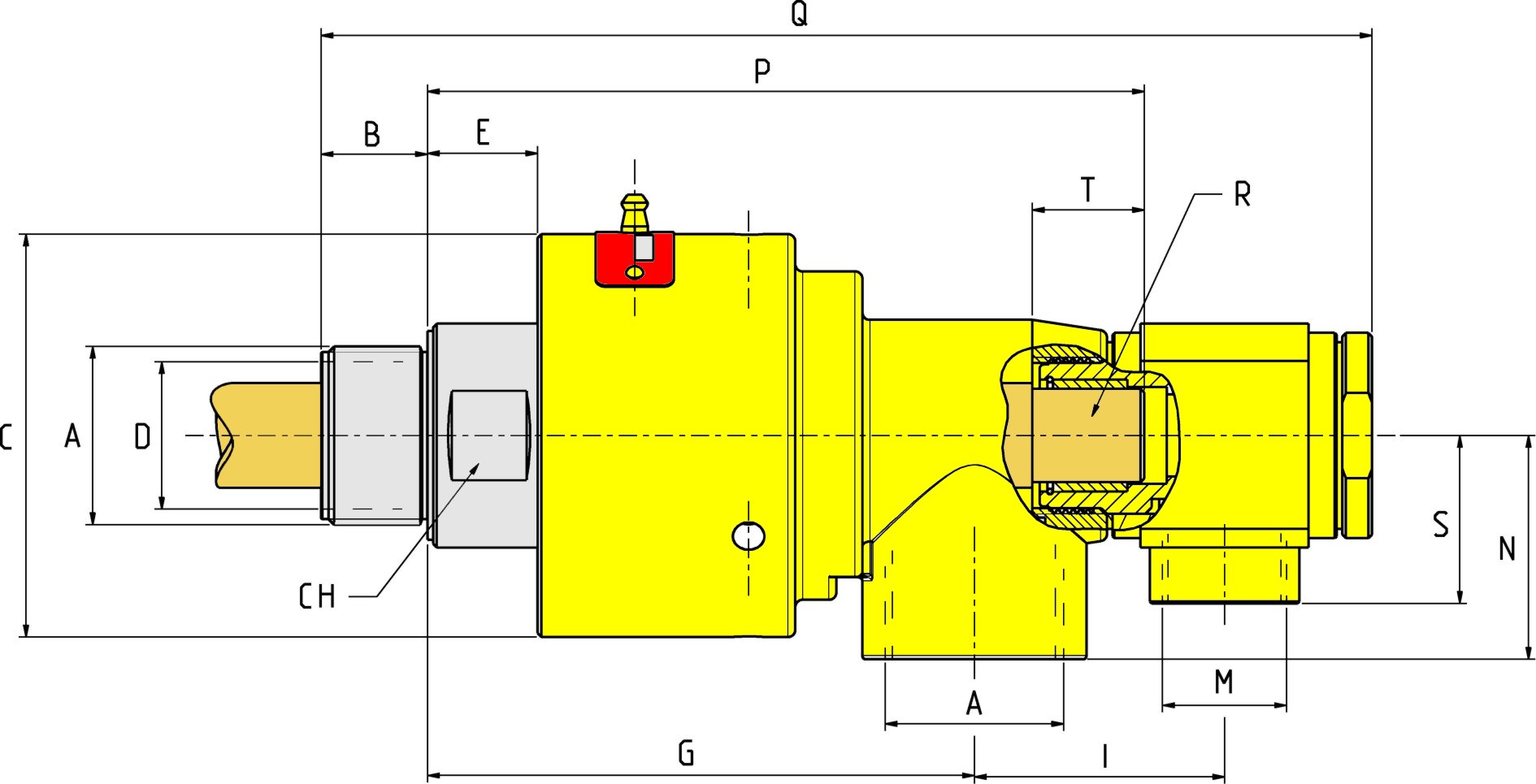

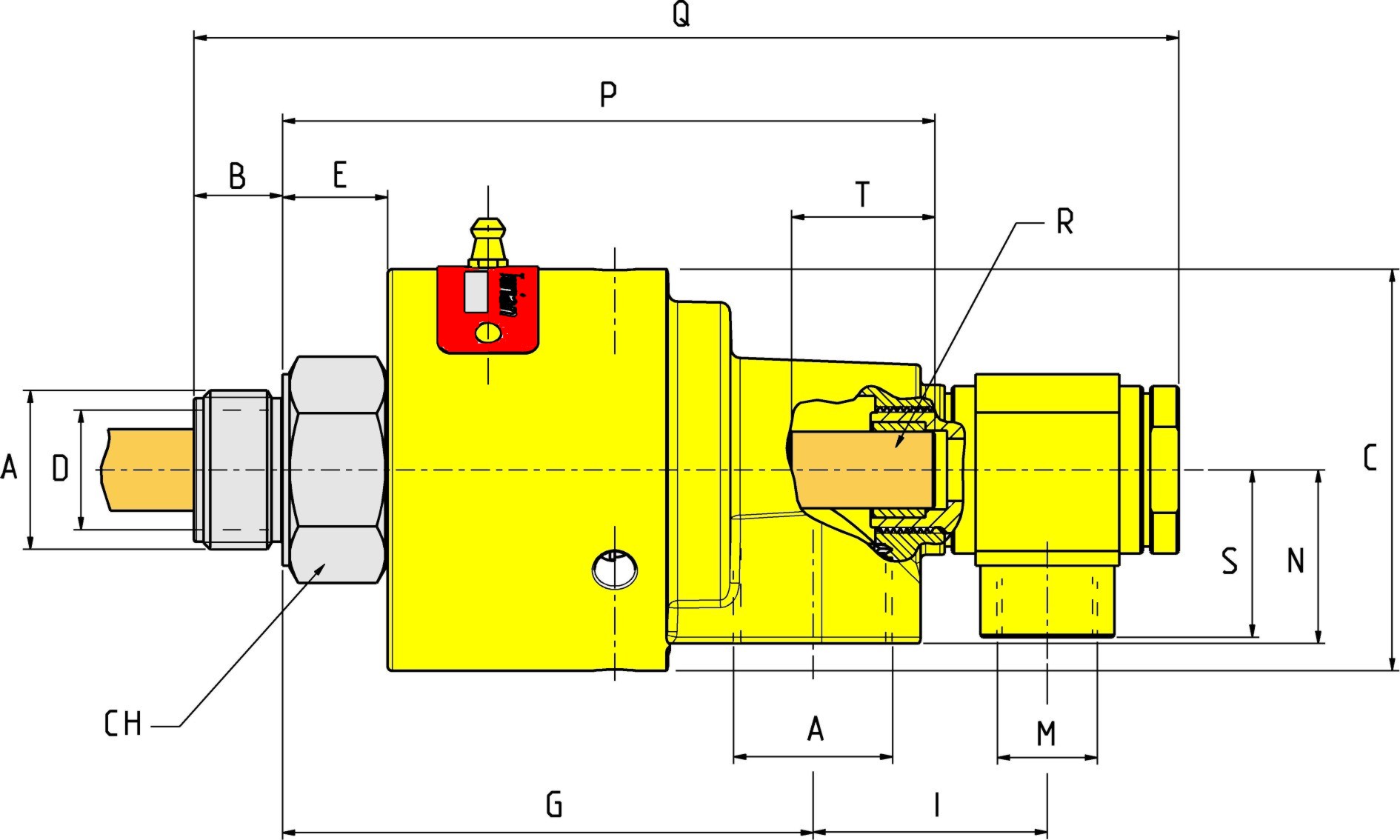

GR 15-SOR
1/2
13.5
60
13
17.4
88.6
33.3
1/4
26.5
104.3
157.9
9
25
20
32
GR 20-SOR
3/4
13.5
70
19
22.1
99.2
40.5
3/8
30
119.7
178.2
12
27.5
20
36
GR 25-SOR
1"
20
84
15
20.5
109.5
49
1/2
36.3
137
206
16
35
32
41









TIPO

A

B
C
D
E
G

I ±1

M
N
P
Q ±1
R h13
S
T
CH

PDF

GR 32-SOR
1"1/4
23.5
91
32
27.1
130.1
59.5
3/4
50
174
247.6
20
40
30
50
GR 40-SOR
1"1/2
28.5
108
39.5
29.5
146.5
67
1"
60
192
281.5
25
45
30
55
GR 50-SOR
2"G
33.5
127
48
33.5
173
79
1"1/4
76
232
330
32
53.5
40
65

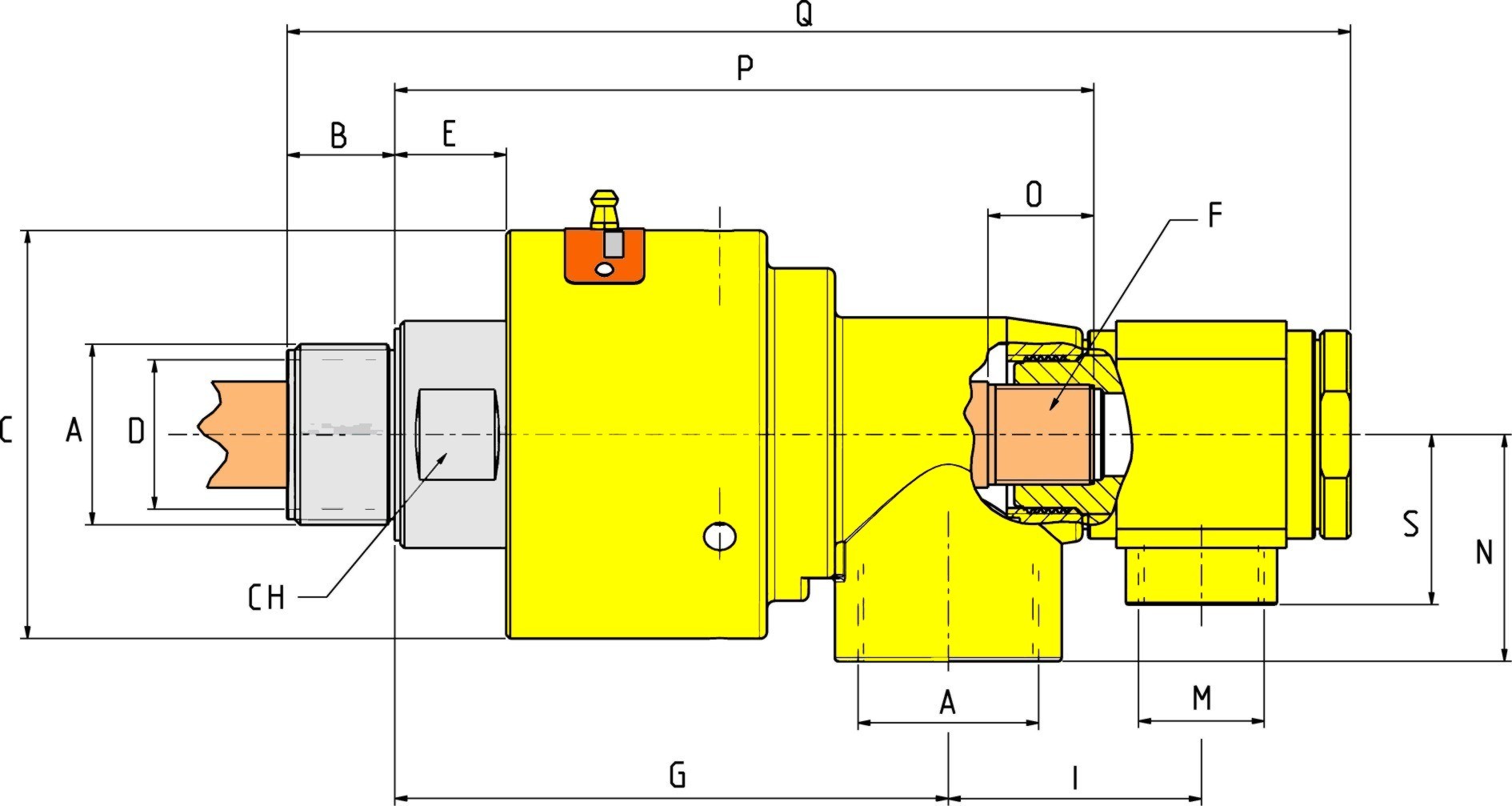

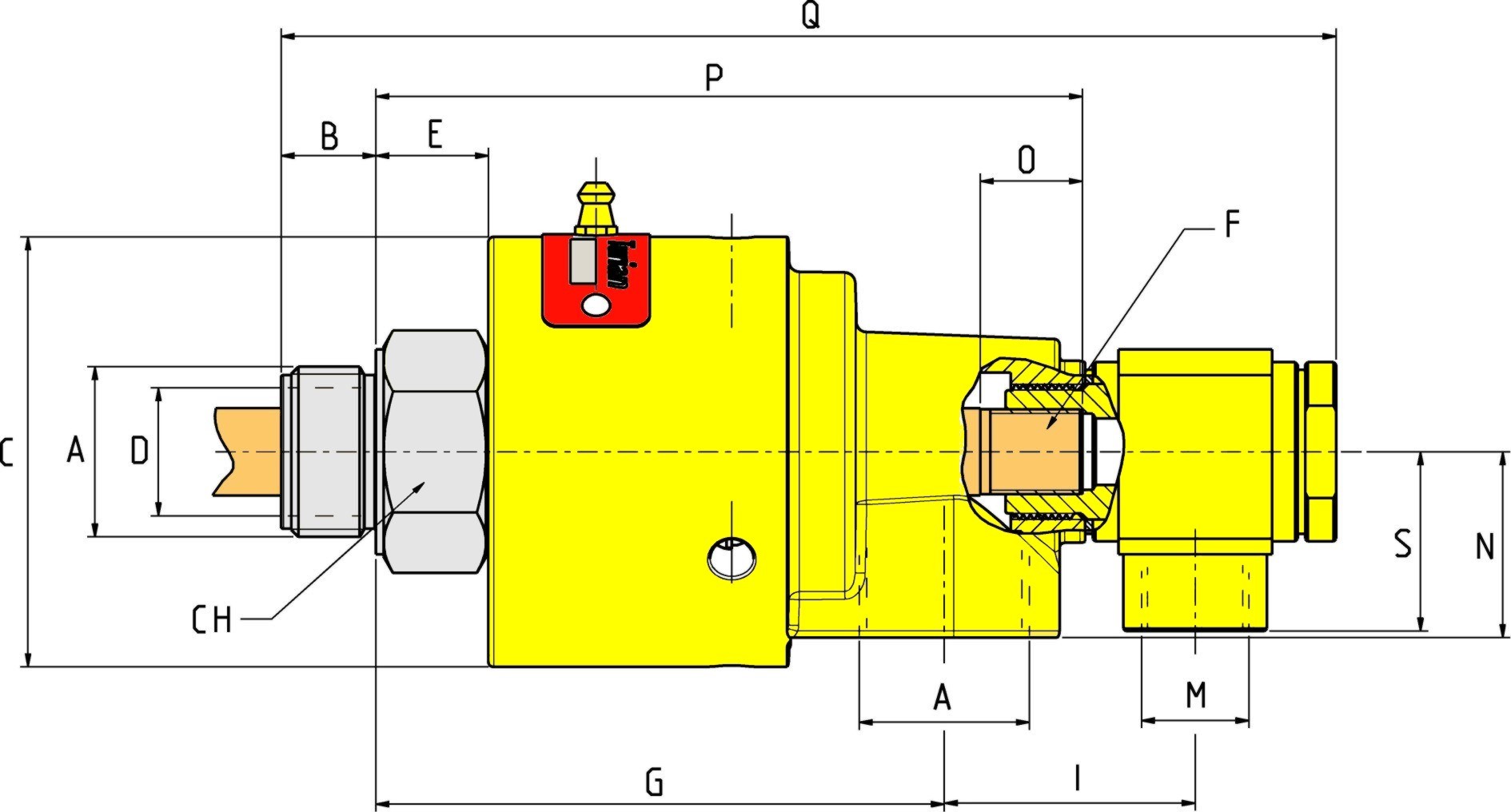

GR - SOF .... Fixed siphon





TIPO

A

B
C
D
E
G

I ±1

M
N
P
Q ±1
F bsp
S
O
CH

PDF

GR 15-SOF
1/2
13.5
60
13
17.4
88.6
33.3
1/4
26.5
104.3
157.9
1/8
25
18
32
GR 20-SOF
3/4
13.5
70
19
22.1
99.2
40.5
3/8
30
119.7
178.2
1/4
27.5
18
36
GR 25-SOF
1"
20
84
15
20.5
109.5
49
1/2
36.3
137
206
3/8
35
20
41







TIPO

A

B
C
D
E
G

I ±1

M
N
P
Q ±1
F bsp
S
O
CH

PDF

GR 32-SOF
1"1/4
23.5
91
32
27.1
130.1
59.5
3/4
50
174
247.6
1/2
40
25
50
GR 40-SOF
1"1/2
28.5
108
39.5
29.5
146.5
67
1"
60
192
281.5
3/4
45
28
55
GR 50-SOF
2"G
33.5
127
48
33.5
173
79
1"1/4
76
232
330
1"
53.5
30
65
