GIUNTI ROTANTI PER OLIO DIATERMICO E VAPORE







HTP - ... SF
HTF - ... SF

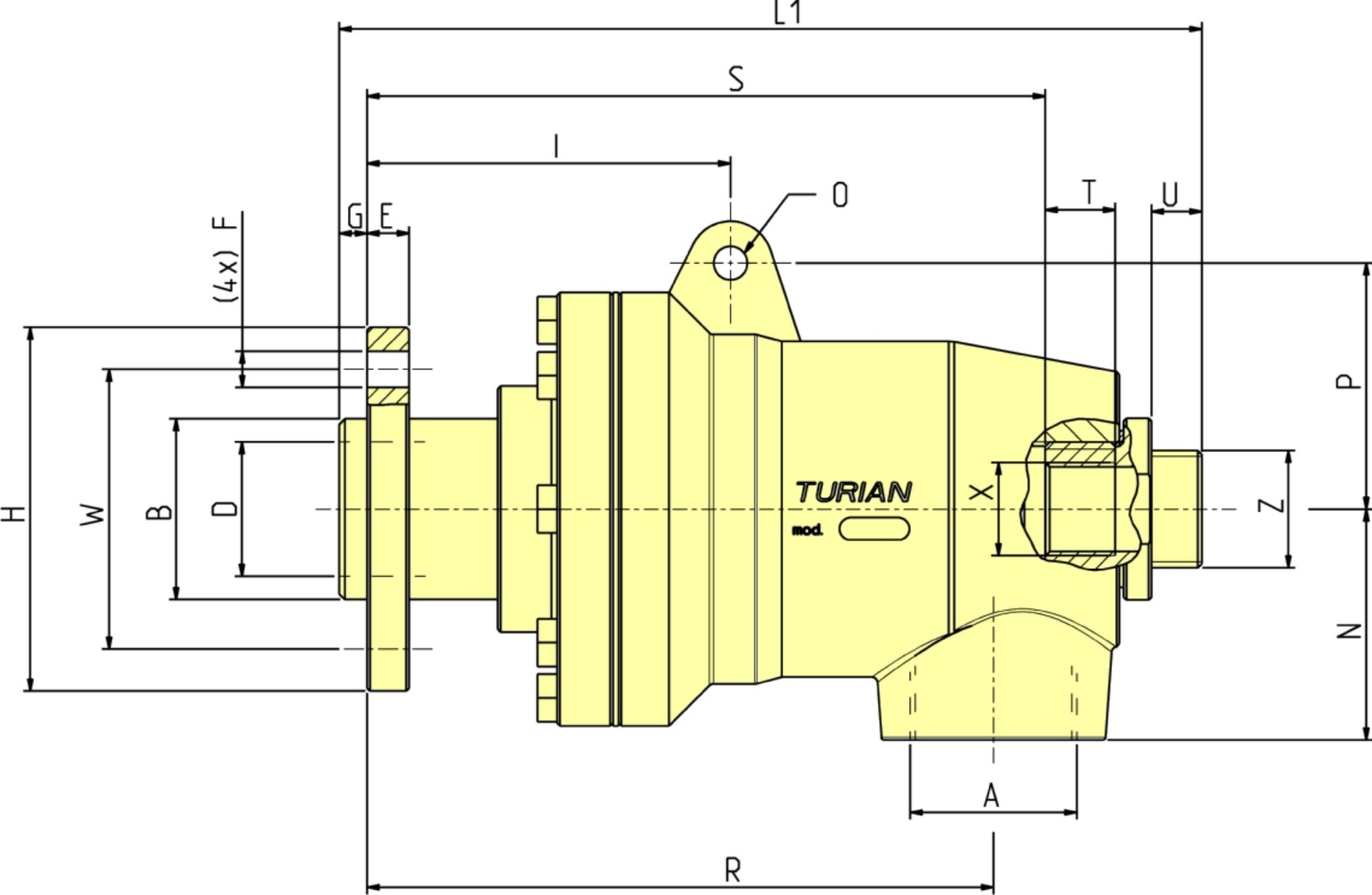

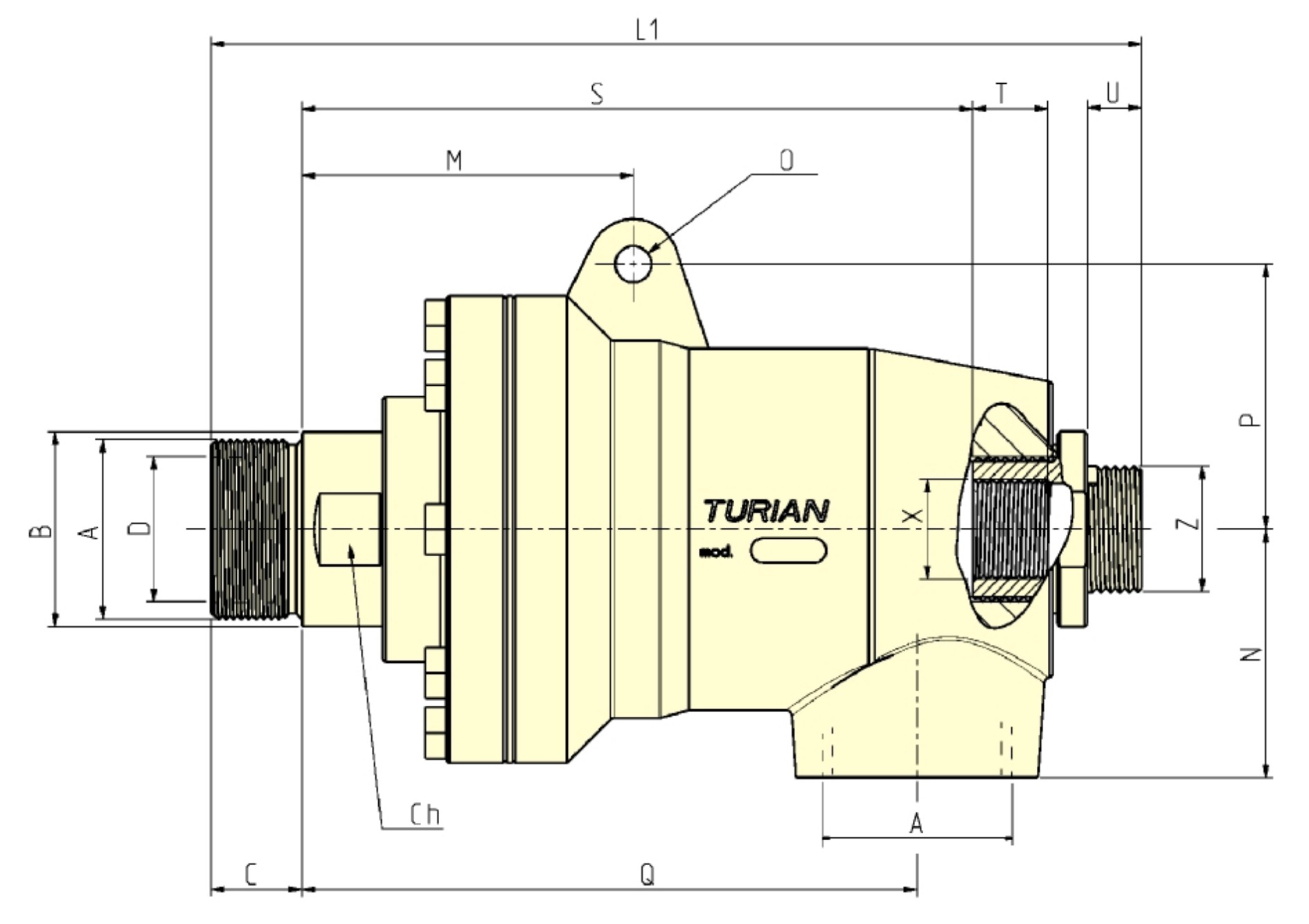

TIPO A

BSP

 B

f7

 C E F G H L1 N Q R S T U Z

BSP

 X

BSP

 Ch

PDF

HTP

PDF

HTF
HTP 15SF - 1/2 25 20 - - - - 154.8 39 93.3 - 102.8 12 13 3/8 1/8 22
HTP 20SF HTF 20SF 3/4 32 20 10 9 6 75 178.4 45 116.9 130.9 142.4 15 12 1/2 1/4 27
HTP 25SF HTF 25SF 1'' 37.5 20 12 9 8 80 212.7 55 134.7 146.7 154.7 15 15 3/4 3/8 32
HTP 32SF HTF 32SF 1 1/4 48 22 12 11 8 100 247.3 58 164.8 178.8 187.3 15 15 3/4'' 1/2 42
HTP 40SF HTF 40SF 1 1/2 55 28.5 15 11 10 105 272.5 72 178.5 197 221.5 18 15 1'' 3/4 50
HTP 50SF HTF 50SF 2'' 64.6 30 15 13 10 130 308.4 82.5 203.9 223.9 222.4 25 18 1 1/4 1'' 60
HTP 65SF HTF 65SF 2 1/2 85 35 15 13 10 120 333 100 207 232 229 25 24 1 1/2 1 1/4 75
HTP 80SF HTF 80SF 3'' 100 40 20 18 12 178 394.8 125 247.3 275.3 312.8 35 30 2'' 1 1/2 90
