GR- ..- 0..

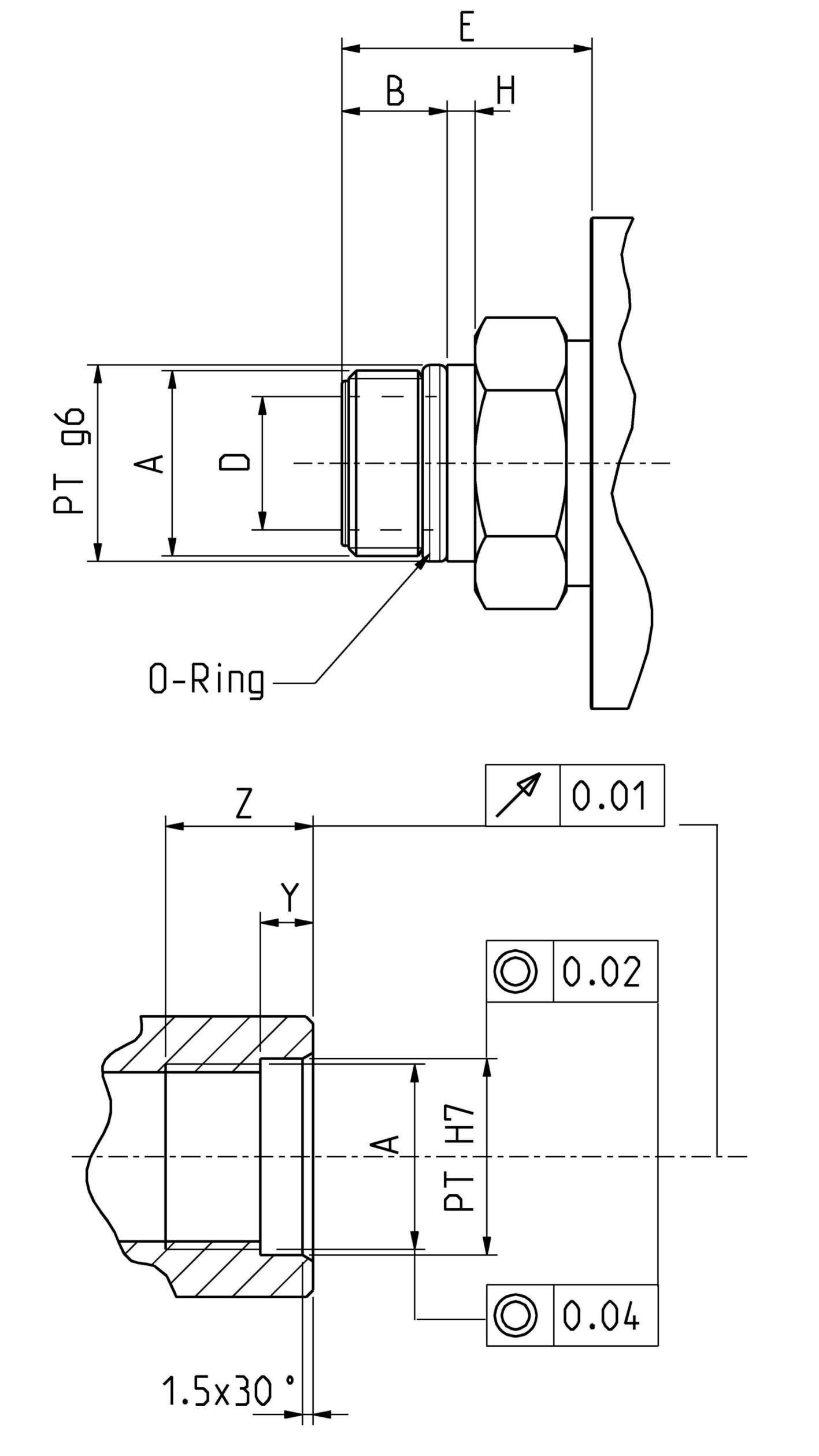

TYPE A PT B D E H Y Z PDF
GR 08 RH 1/4 BSP RH
-
10
7.5
23
-
-
12
GR 08 LH 1/4 BSP LH
-
10
7.5
23
-
-
12
GR 08-050 RH 1/4 BSP RH
15
10
7.5
23
3
6
14
GR 08-050 LH 1/4 BSP LH
15
10
7.5
23
3
6
14
GR 08-100 RH 1/4 NPT RH
-
10
7.5
23
-
-
-
GR 08-100 LH 1/4 NPT LH
-
10
7.5
23
-
-
-
GR 10 RH 3/8 BSP RH
-
12
9
24
-
-
14
GR 10 LH 3/8 BSP LH
-
12
9
24
-
-
14
GR 10-050 RH 3/8 BSP RH
18
12
9
24
3
6.5
16
GR 10-050 LH 3/8 BSP LH
18
12
9
24
3
6.5
16
GR 10-100 RH 3/8 NPT RH
-
12
9
24
-
-
-
GR 10-100 LH 3/8 NPT LH
-
12
9
24
-
-
-
GR 10-200 RH 5/8-18 UNF RH
-
14
9
24
-
-
16
GR 10-200 LH 5/8-18 UNF LH
-
14
9
24
-
-
16
GR 10-250 RH 5/8-18 UNF RH
16.66
14
9
28
4.8
8.5
20
GR 10-250 LH 5/8-18 UNF LH
16.66
14
9
28
4.8
8.5
20
GR 10-400 RH M16x1.5 RH
-
11
9
24
-
-
13
GR 10-400 LH M16x1.5 LH
-
11
9
24
-
-
13
GR 10-450 RH M16x1.5 RH
18
11
9
26
5
8.5
17
GR 10-450 LH M16x1.5 LH
18
11
9
26
5
8.5
17
GR 10-401 RH M16x2 RH
-
14
9
24
-
-
17
GR 10-401 LH M16x2 LH
-
14
9
24
-
-
17
GR 10-451 RH M16x2 RH
18
14
9
28
5
8.5
22
GR 10-451 LH M16x2 LH
18
14
9
28
5
8.5
22



TYPE A PT B D E H Y Z
PDF
GR 15 RH 1/2 BSP RH
-
15
13
31
-
-
-
GR 15 LH 1/2 BSP LH
-
15
13
31
-
-
-
GR 15-050 RH 1/2 BSP RH
22
15
13
31
3
6.5
20
GR 15-050 LH 1/2 BSP LH
22
15
13
31
3
6.5
20
GR 15-100 RH 1/2 NPT RH
-
15
13
31
-
-
-
GR 15-100 LH 1/2 NPT LH
-
15
13
31
-
-
-
GR 15-200 RH 3/4-16UNF RH
-
19
13
31
-
-
21
GR 15-200 LH 3/4-16UNF LH
-
19
13
31
-
-
21
GR 15-201 RH 1"-14UNS RH
-
19
13
31
-
-
21
GR 15-201 LH 1"-14UNS LH
-
19
13
31
-
-
21
GR 15-251 RH 1"-14UNS RH
31.7
19
13
50
12.7
16.5
33
GR 15-251 LH 1"-14UNS LH
31.7
19
13
50
12.7
16.5
33
GR 15-400 RH M20x1.5 RH
-
14
13
31
-
-
16
GR 15-400 LH M20x1.5 LH
-
14
13
31
-
-
16
GR 15-450 RH M20x1.5 RH
22
14
13
31
5
8.5
20
GR 15-450 LH M20x1.5 LH
22
14
13
31
5
8.5
20
GR 15-401 RH M22x1.5 RH
-
14
13
31
-
-
16
GR 15-401 LH M22x1.5 LH
-
14
13
31
-
-
16
GR 15-451 RH M22x1.5 RH
27
14
13
31
3
7
18
GR 15-451 LH M22x1.5 LH
27
14
13
31
3
7
18
